This are the results obtained from the preamps described in the
page before and others as they were measured during the 13° Italian
Homemaders Meeting that took Place in Orvieto
19th - 20th September 1998.
|
|

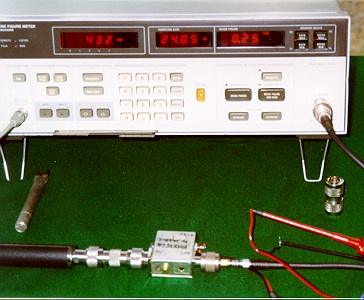

| JA4BLC 432Mhz FHX35LG 0.25 NF 24dB Gain (2nd) | IK5QLO 432Mhz FHX35LG 0.36 NF 22.2 dB Gain (3rd) |
|
|

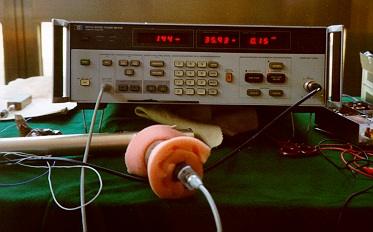

| IK5QLO 144Mhz FHX35LG 0.39NF 19.5 dB Gain | I0FTG 144Mhz MGF2116 0.15NF 35.6 dB Gain !!! (1st) |
|
|

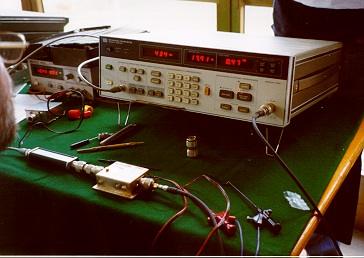

| I4CVC & I0FTG Tuning a 1296 Pre 0.5NF and 14 dB Gain | IK5UBM (S.K.) 432Mhz MGF1302 0.47NF 17.9 dB Gain |
